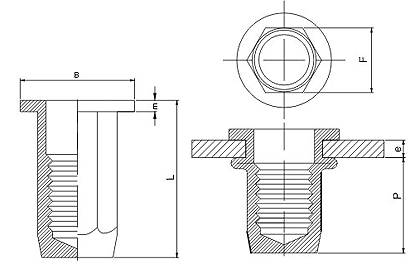

e |
| Fmax | B | E | L | P | Setting Load | Torque(N.m.) | ||
max | ||||||||||
M4 | 0.50 | 2.00 | 6 | 5.98 | 9 | 1.0 | 15 | 10.0 | 5600 | 3 |
M5 | 0.50 | 3.00 | 7 | 6.98 | 10 | 1.0 | 20 | 14.7 | 8000 | 6 |
M6 | 0.50 | 3.00 | 9 | 8.98 | 13 | 1.5 | 23 | 17.0 | 12000 | 10 |
M6 | 3.00 | 5.50 | 9 | 8.98 | 13 | 1.5 | 26 | 17.0 | 12000 | 10 |
M8 | 0.50 | 3.00 | 11 | 10.98 | 16 | 1.5 | 26 | 19.0 | 15000 | 24 |
M8 | 3.00 | 5.50 | 11 | 10.98 | 16 | 1.5 | 29 | 19.0 | 15000 | 24 |
M10 | 1.00 | 3.50 | 13 | 12.98 | 19 | 2.0 | 33 | 25.0 | 22000 | 48 |
M10 | 3.50 | 6.00 | 13 | 12.98 | 19 | 2.0 | 36.7 | 25.0 | 22000 | 48 |
